UNB-249-4KUNB-249-4K

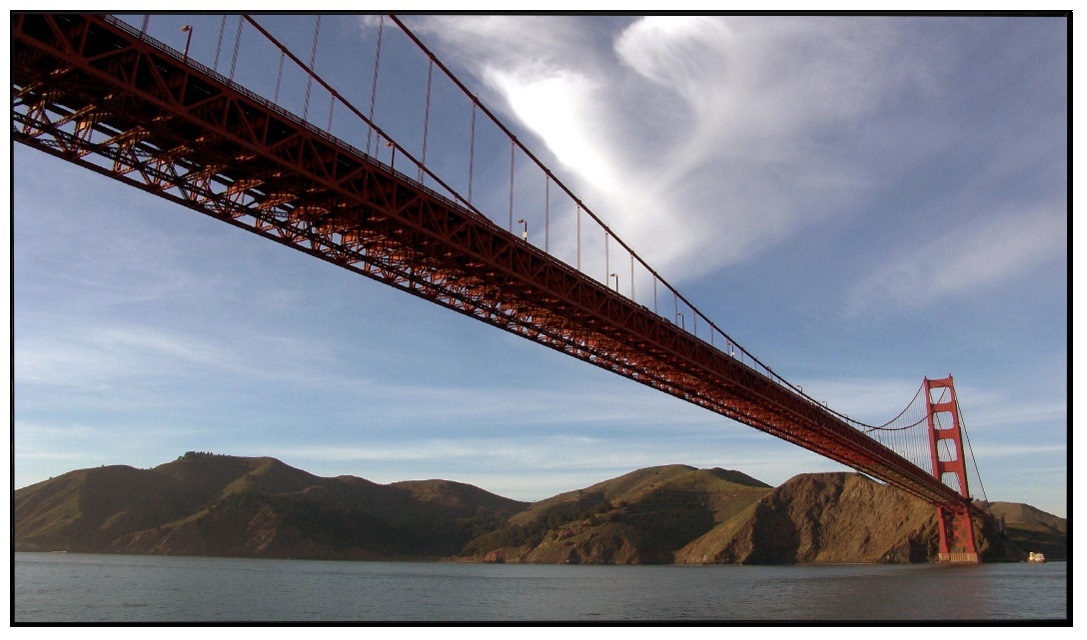

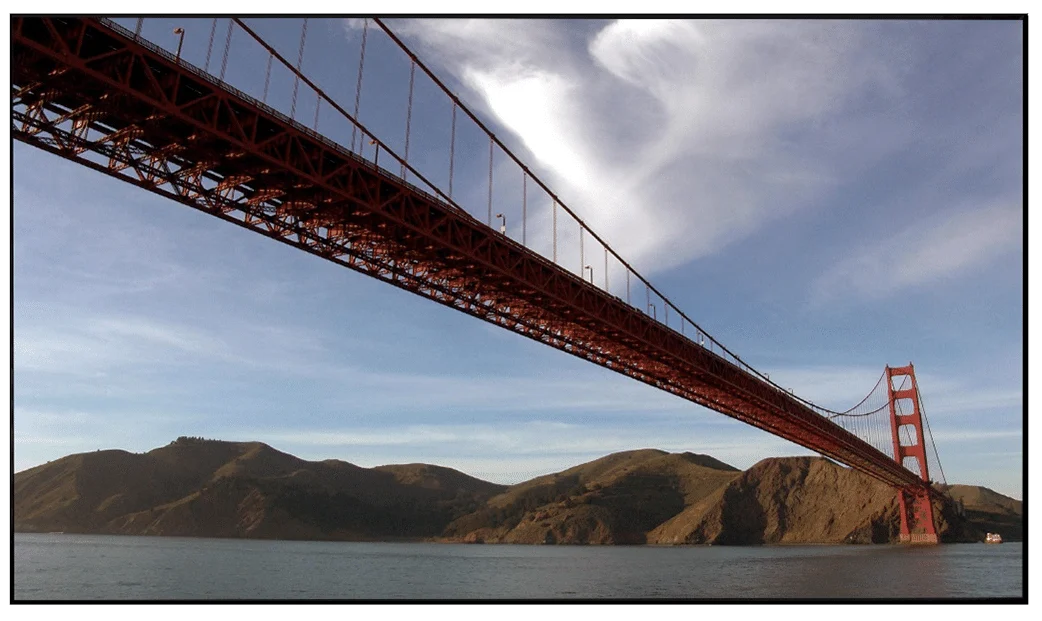

UNB-249-4K

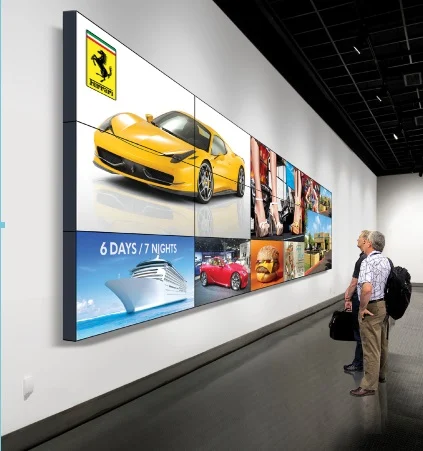

UNB-4K series was introduced and designed for Broadcast, Commercial, digital signage and A/V video wall applications.

UNB-4K Series supports Ultra-Narrow Bezel LED-backlit, S-IPS, LCD display technology for Broadcast & High-END Commercial video wall applications.

UNB-4K Series is constructed with the latest panel technology S-IPS, the NEW series abbreviation called after its unique panel bezel style and design “Ultra Narrow Bezel”, exceptional viewing angles and 10 bit color depth to enhance image quality for all types of installations.  In addition, direct LED backlight technology ensures lower power consumption and improves brightness uniformity, dimming capabilities and contrast ratio.

The ultra narrow bezel panels are virtually seamless, have small pixel pitch – just 0.63 mm i.e. images are sharp and clear at any distance. The ultra narrow bezel is only 3.5mm for side by side seamless displays.

Product Documents

Datasheet

Manuals

Drawings

Firmware

Additional Resources

Contact Sales

Description

  • UNB-249-4K, 49″ – FHD Panel
  • Anti Glare Coating
  • Landscape or portrait orientation

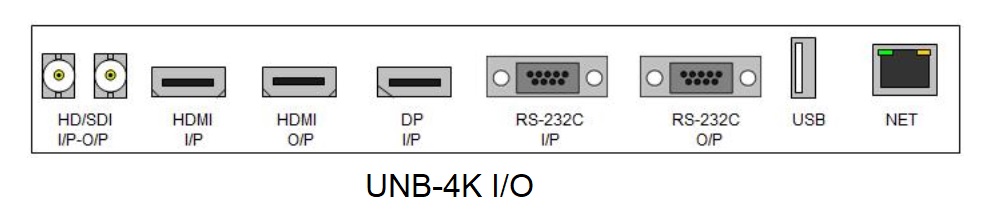

  • SDI, HDMI & Display port inputs capability
  • Up to UHD (3840 x 2160) resolution
  • Ultra Narrow Bezel – Minimal bezels width
  • 0.05” (1.2mm) Bottom & Right
  • 0.09” (2.3 mm) Top & Left
  • Total bezel width 0.14” (3.5 mm) side by side displays
  • Direct LED direct backlight source improves brightness uniformity
  • Broadcast & Professional-Grade quality
  • S-IPS panel technology offers wide viewing angles ideal for all applications
  • Color calibration solution ensures color uniformity across the entire wall setup
  • Wall Express control system via serial IP connectivity designed to easily manage any number of monitors from a remote PC
  • Stackable Monitor/frame capability
  • Optional IR receiver terminal capability
