Home  //  Timing  //  Standalone Timing System  //  TCA
TCATCA
  • TCA
  • TCA

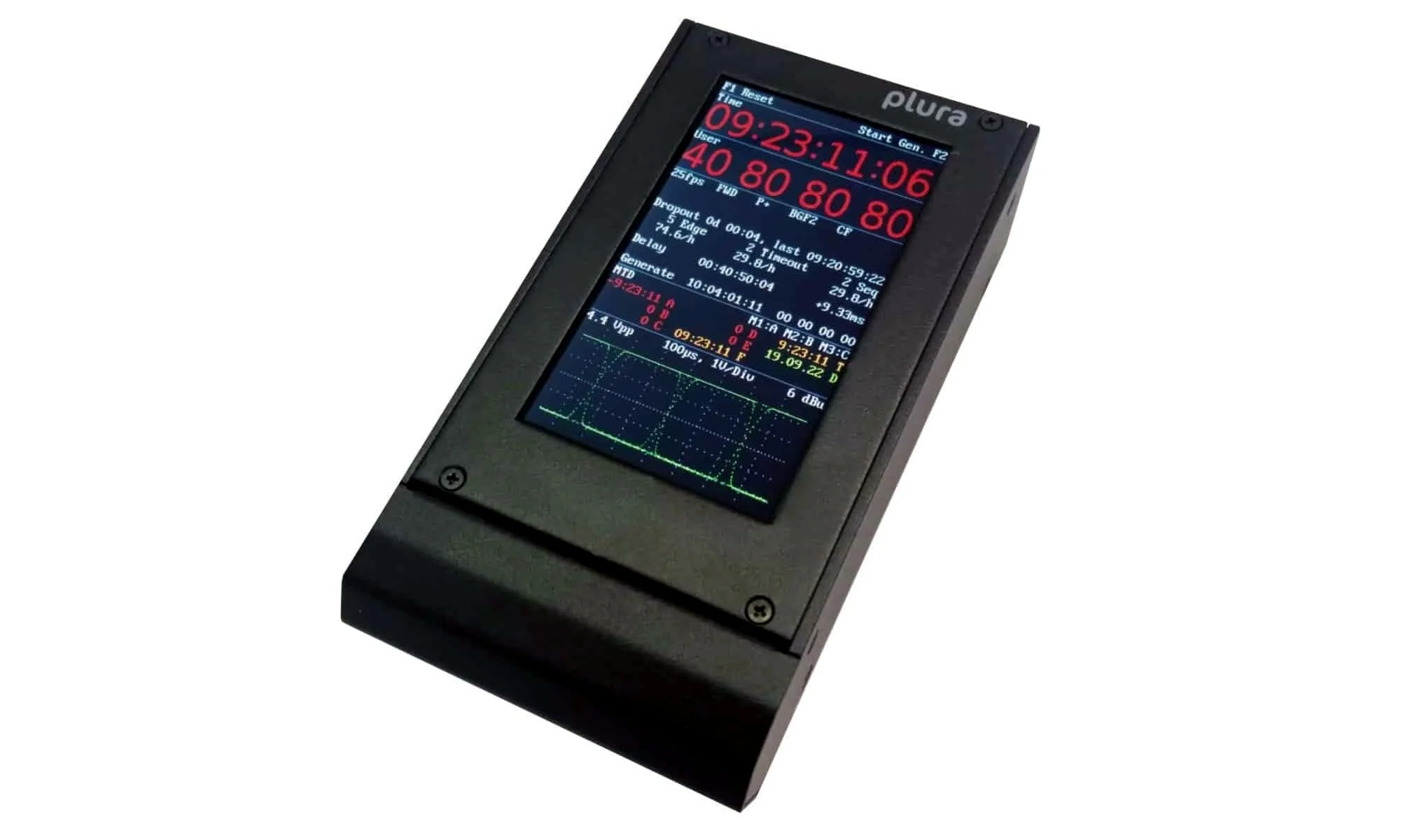

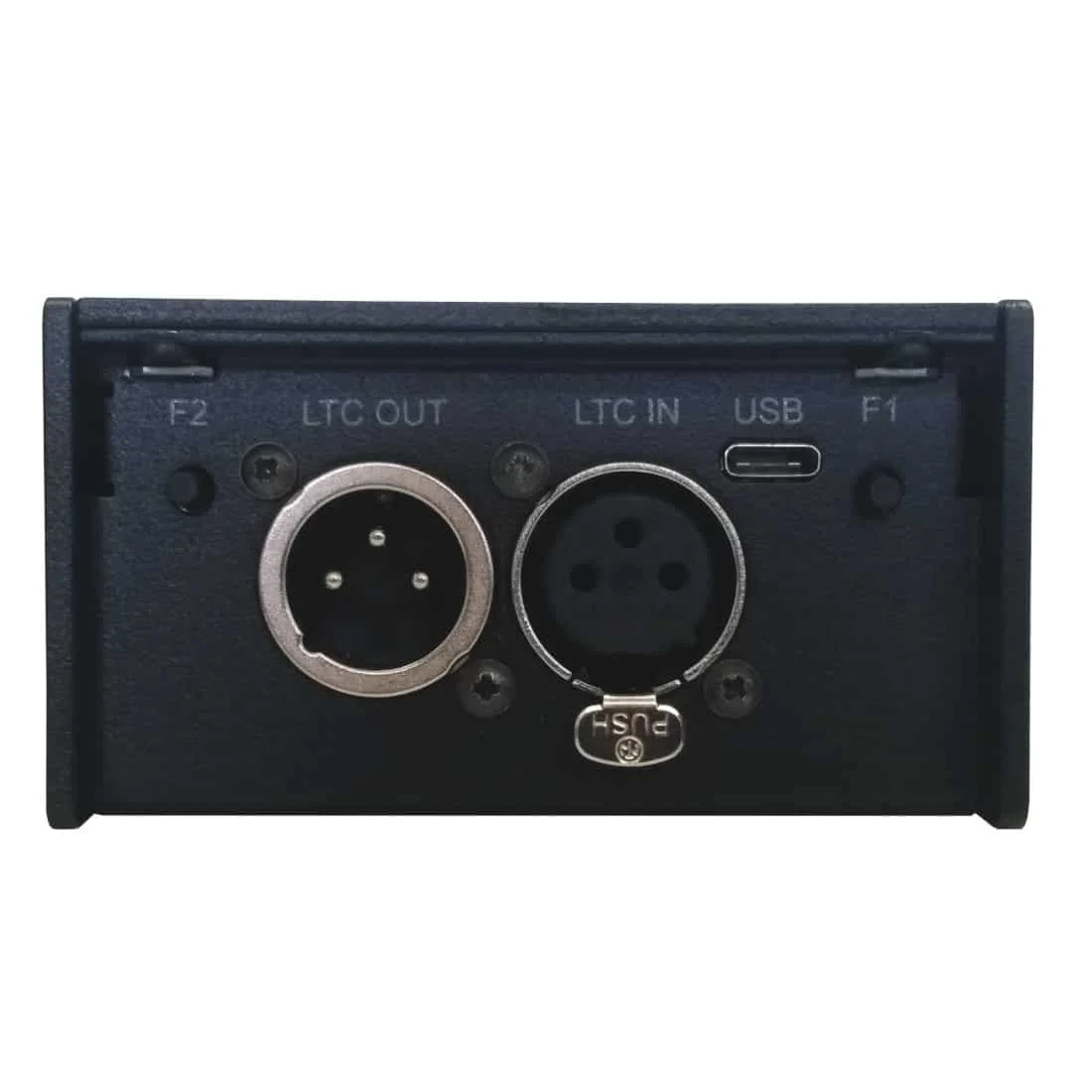

    TCA is a timecode analyzer with LTC reader and generator.

    Product Documents

    Datasheet

    • TCA Datasheet

    Manuals

    • TCA Manual

    Firmware

    • TCA Firmware
    • TCA Release Notes

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

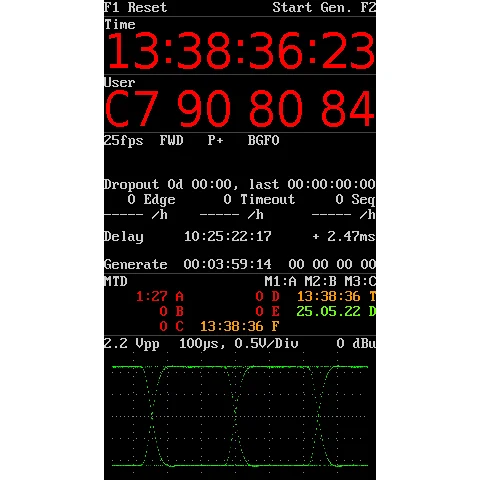

    • Display of complete LTC information: Time, User (Binary groups), Flags
    • Auto-detection of frame rate
    • Auto-detection of Plura MTD timers
    • Measurement of signal level
    • Display of LTC waveform
    • Detection and counting of drop-outs
    • Integrated free-running LTC generator
    • Delay measurements between LTC reader and LTC generator

    Additional information

    Weight 0.88 lbs / 0.4 kg
    Dimensions 6.3 × 3.4 × 1.9 in / 160.0 × 86.4 × 48.3 mm
    Features

    Generator, Reader, Timer

    Housing

    Stand Alone System
