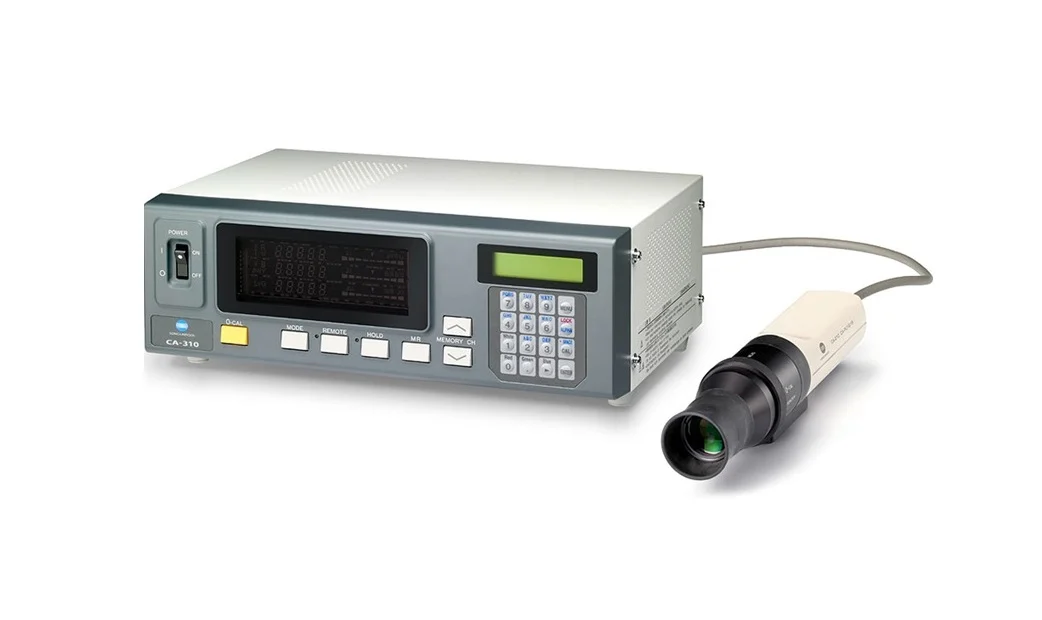

Minolta CA-310 probeMinolta CA-310 probe

Minolta CA-310

Minolta CA-310 probe is used for high-speed, high accuracy measurements of LED-backlit LCD Monitors.

Enables high-speed measurements of extremely low luminances down to 0.005cd/m2.

Highly Accurate with sensors that virtually match CIE color matching functions

Unique optical system and color display – four digit color display for greater precision.

Contact Sales

Description

  • Minolta CA-310 provides advanced white balance adjustments
  • Reduces errors due to LED emission to less than 1/3
  • High accuracy adjustment to Gamma
  • Connect up to 5 sensors when using the expansion option board
  • Input voltage: 100-240V~, 50-60HZ 50VA
  • Interface: USB, RS-232C (38,400 bps or below)

Additional information

ICAC

Yes
