Description

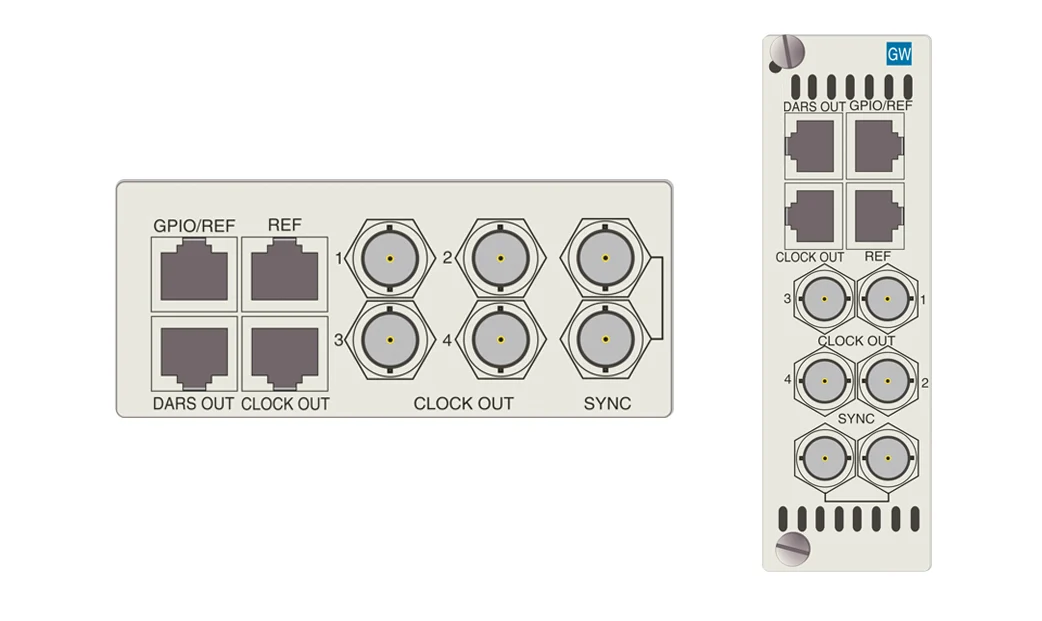

- 4 x Word Clock outputs
- Two independent selectable fundamental sample clocks
- Adjustable output levels
- Digital Audio Reference Signal output (eg. Mute)

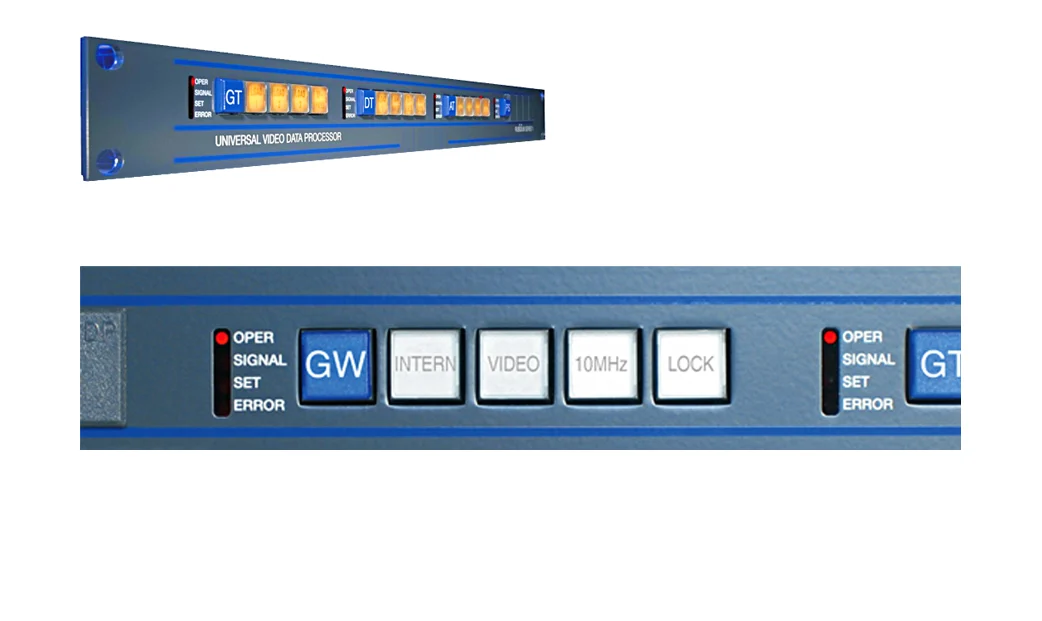

- Selectable reference input: Video, 10MHz
- 4 x programmable GPIOs as I/N or O/P
Two fundamental sample clocks can be selected independently:
- 32 Khz
- 44.1 Khz
- 48 Khz
- 96 kHz
Based on the above frequencies each output can individually be configured to:
- 32 kHz x 1, x 64, x 256
- 44.1 kHz x 1, x 64, x 256
- 48 kHz x 1, x 64, x 256
- 96 kHz x 1, x 64
