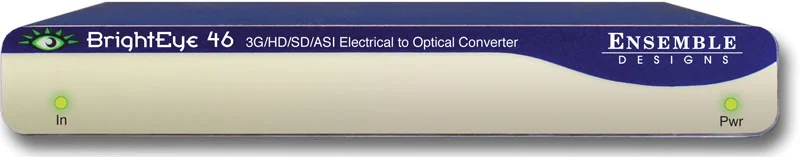

BrightEye 46 3G/HD/SD/ASI Electrical to Optical Converter

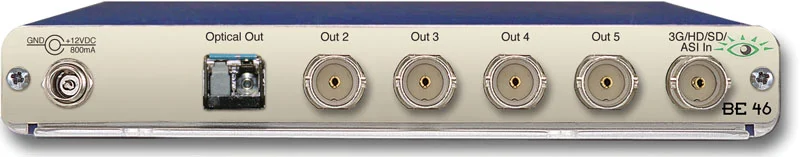

BrightEye 46 is an electrical to optical converter and distribution amplifier that can be used with standard definition video signals, 3 Gb/s and 1.5 Gb/s high definition signals, or ASI signals. The video input is reclocked and presented on four BNCs and is also converted to an optical signal and presented on an optical LC connector. This optical output can drive single mode fiber to a distance of 20 kilometers. With an optical launch power attenuator, multi-mode fiber can also be used with BrightEyes.

Product Documents

Datasheet

Manual

Contact Sales

Description

  • Optical Transmitter
  • Electrical to Optical Converter
  • Use with HD or SD signals
  • Use with ASI Signals
  • 3G HD, Level A or Level B supported
  • Serves as a Distribution Amplifier
  • Passes Embedded Audio
