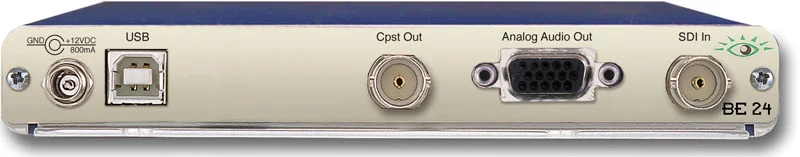

be24_rear-800x157be24_rear-800x157

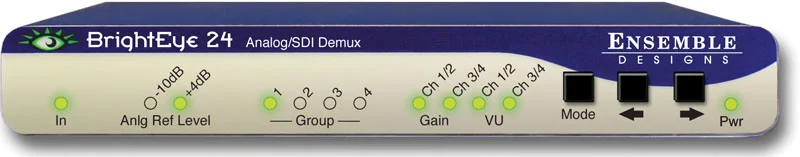

BrightEye 24 SDI to Analog Converter and Disembedder

BrightEye 24 is both a disembedder (demultiplexer) and a digital to analog video converter. The incoming serial digital video signal is converted to an analog composite output. Audio signals present in the incoming digital video signal are extracted and delivered as four channels of analog audio.

Audio mixing, level adjustments, and channel shuffling are accessed through the BrightEye Control app. Audio group selection is also made through BrightEye Control. A variety of audio connectors and adapters are available for integrating BrightEye 24 to any type of system. Use BrightEye 24 in desktop and broadcast applications.

Product Documents

Datasheet

Contact Sales

Description

  • Use with Servers, VTRs and Workstations
  • Disembedder and Converter
  • Embedded SDI Input
  • Analog Audio Output
  • Composite Video Output

Additional information

Audio Features

Analog Audio, Disembedder
Control

USB
Video Input

SD SDI
Video Output

Analog Composite

Product Documents

Datasheet
