BrightEye 2 Analog to SDI Converter

BrightEye 2 provides uncompromised analog to digital video conversion of component and composite video. Analog inputs are digitized at 12 bits of resolution with 4x oversampling. Composite video is processed through an adaptive comb filter decoder. PAL / NTSC input detection is automatic.

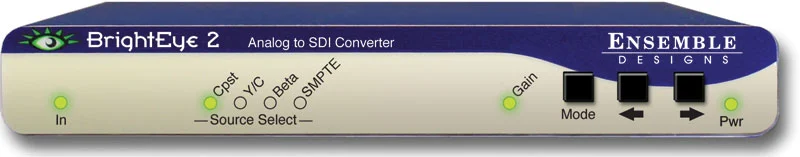

Input selection and gain adjustment is made from the front panel. A status display provides an input presence indication. Video levels can be adjusted through the BrightEye Control app.

Supporting both Beta and SMPTE component, composite, and Y/C formats, BrightEye 2 adapts to many conversion needs.

Use BrightEye 2 to digitize analog VTRs and cameras.

Product Documents

Datasheet

Contact Sales

Description

  • Use with VTRs and Cameras
  • Composite and S-Video Input
  • Component Input
  • SD SDI Output
  • 12 Bit
