BrightEye 1 Analog/SDI to SDI/Optical Converter with TBC and Frame Sync

BrightEye 1 is a comprehensive solution to signal acquisition. With analog component, analog composite S-Video (Y/C), and SDI video inputs, it can take on any video source. The built-in Time Base Corrector/Frame Synchronizer provides a rock steady output — even with marginal inputs. The reference input is used to genlock the converter output to house reference such as color black.

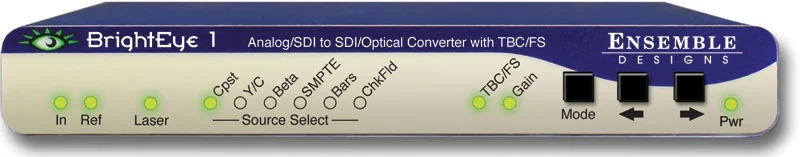

Front panel controls select input source, format and adjust video gain. Video levels can be adjusted through the BrightEye Control app.

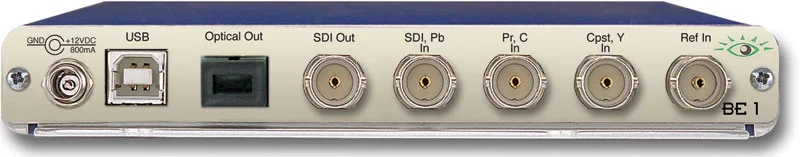

Simultaneous SD SDI (electrical) and Optical outputs are provided, so you can deliver the signal just about anywhere. Both Color Bars and the SD SDI Checkfield (Pathological) test patterns are included to facilitate transmission path testing.

Product Documents

Datasheet

Contact Sales

Description

  • Use with Cameras, Satellite Receivers and VHS Decks
  • Analog and SD SDI Input
  • SD SDI and Optical Output
  • TBC and Frame Sync
  • 12 Bit Processing

Additional information

Control

Video Input

SD SDI, Analog Component, Analog Composite
Video Output

SD SDI, Fiber Optic
Video Processing

Reference In/Timeable Output, TBC/Frame Sync

Product Documents

Datasheet
