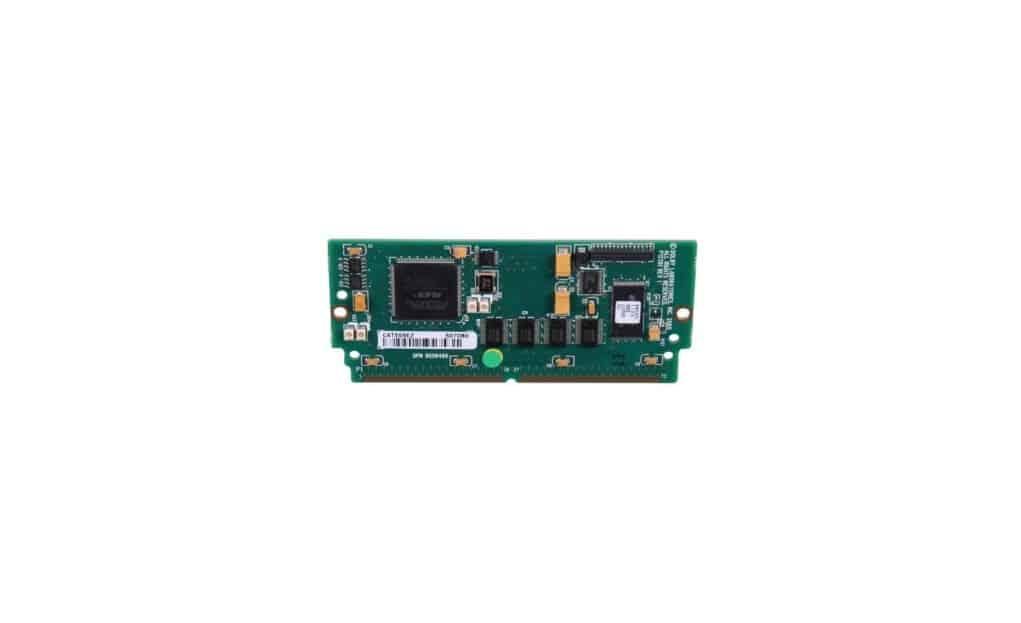

Avenue 7630 and 7635 Dolby E, Dolby D and AC-3 Encoder Sub Module and Software Key Option

The 7630 Encoder sub module option supports Dolby E signals. The 7635 Encoder sub module option supports Dolby D and AC-3 signals. The 7630 or 7635 fits onto Avenue modules that benefit from comprehensive audio handling. In addition to the hardware sub module, a unique software key is provided for activation.

The 7630 or 7635 encoder is fed from selected outputs of the main module’s channel mixer and shuffler. The resulting encoded bitstream can be output both on an AES output and embedded into the SDI output.

The 7630 or 7635 are for use with the following modules:

• 7555 HD / SD Video Processing Frame Synchronizer

• 7660 HD / SD Embedder, Disembedder and Data Inserter

• 9550 3G / HD / SD Video Processing Frame Synchronizer

• 9600 3G / HD / SD Embedder, Disembedder and Data Inserter

The 7555 or 9550 are recommended for use with the 7615, 7630 and 7635 due to the 1 frame delay in the Dolby processors

For complete audio processing, these modules can be fitted with both the 7615 Decoder and a 7630 or 7635 Encoder at the same time. One analog audio channel per encoder/decoder is used for data.

Product Documents

Datasheet

Contact Sales

Description

  • Avenue 7630 supports Dolby E Encoding
  • Avenue 7635 supports Dolby D and AC-3 Decoding
  • Supported by Avenue 7555, 7660, 9550, and 9600.
  • Avenue 7555 or 9550 recommended.
  • Combine with Avenue 7615 for complete Dolby audio processing with Encode and Decode
