Avenue 6010 Four Channel 24-bit Audio ADC

The 6010 module converts four channels of analog audio to two AES digital audio streams. Analog to digital conversion is performed with 24 bit precision for outstanding sonic performance. Use the 6010 to convert the audio outputs of your existing analog VTRs or any other high quality analog audio source. Like all modules in the Avenue series, the 6010 may be controlled either locally or remotely.

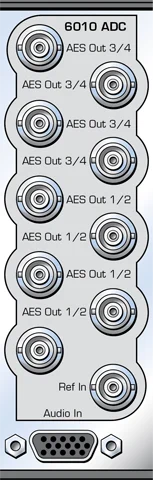

Four high impedance balanced analog inputs are provided on a high density 15-pin D connector. Two AES outputs (four copies of each) are provided on BNC connectors. The module has a built-in 48 kHz crystal-controlled sample rate clock, or it may be locked to an external AES3id reference. An LED is provided on the front of the module to indicate the presence of a valid external reference.

Four additional LEDs illuminate when the analog input signals reach reference digital output level. A dip switch allows reference digital output level to be set to -16, -18, or -20 dBFS. A rotary control is provided to set the gain of the analog input stages. All local controls and status indicators are available via the Avenue remote control system.
