Home  //  Timing  //  MTD Timer  //  UD300D
ud300d_front_1041x621ud300d_front_1041x621
ud300d_front_1041x621ud300d_front_1041x621
  • UD300D

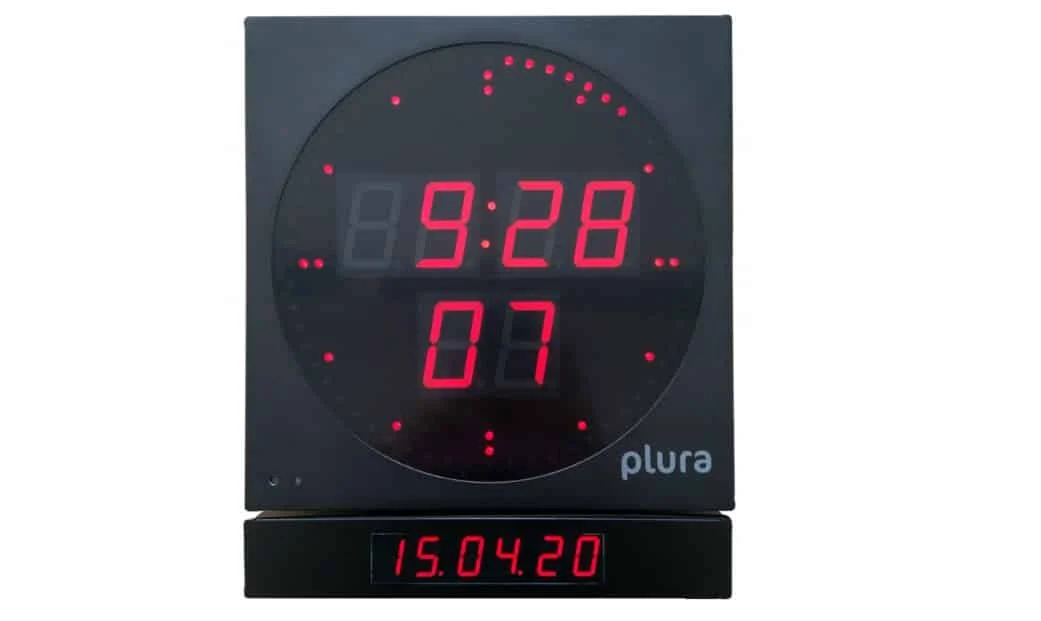

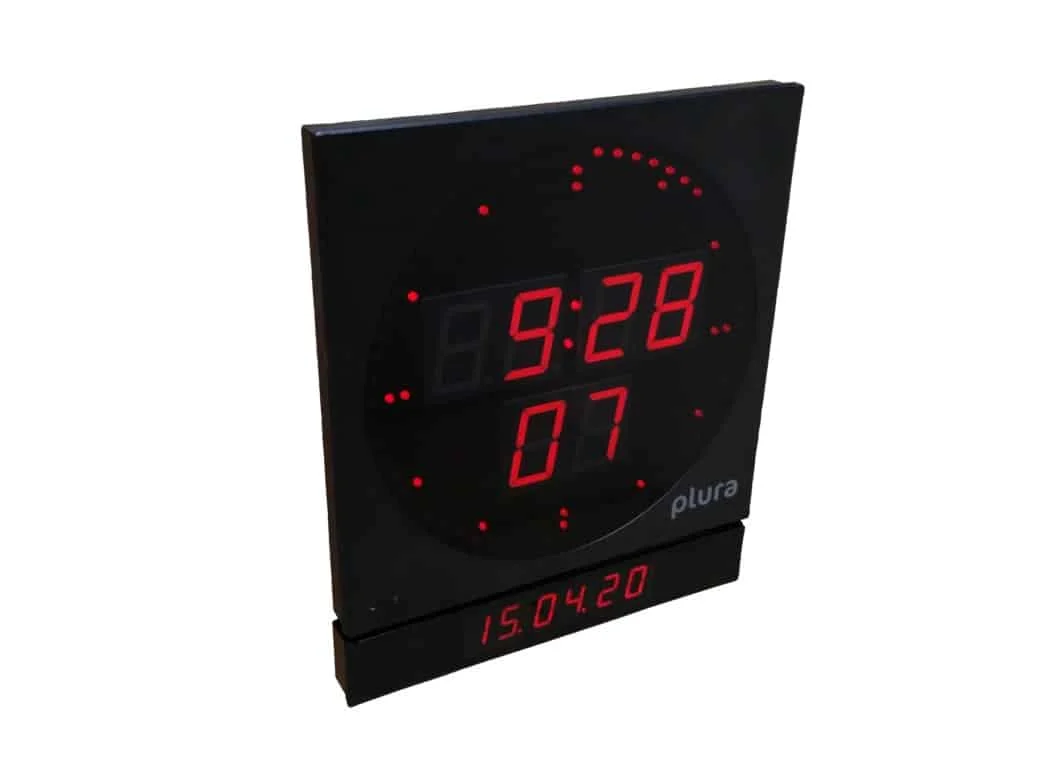

    UD300D displays built with LED ring, 300 mm square housing and appended 25 mm display, 6 digits.

    UD300D displays are designed and engineered to perfection.

    All displays have built-in quartz clock which enables continuous operation even if a drop out of signal take place.

    Product Documents

    Datasheet

    • UD300D Datasheet

    Manuals

    • UD300D Manual
    • UD300W Wall Mount

    Firmware

    • UD300D Firmware

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • LED ring, 300 mm square housing.
    • Appended 25 mm display, 6 digits.
    • Multi-Display color Red, Green or Yellow.
    • Eight user select-able brightness levels.
    • Reads LTC, MTD, RS485, RS422, RS232, GPI.
    • Reads NTP and MTD.
    • Reads IRIG-B.
    • Serial GPS receiver input.
    • PoE (Power over Ethernet is supported).

    Additional information

    Weight 8.15 lbs / 3.7 kg
    Dimensions 12.72 × 2.36 × 15.03 in / 323.1 × 59.9 × 381.8 mm
    Features

    NTP Client, Display, PoE, Power 220/110 Option, Timer

    Housing

    Stand Alone System

    Reference Type

    MTD, GPS, IRIG-B, LTC

    Videos

    Prev 1 of 1 Next
    • MTDOnScreen Overview

      MTDOnScreen Overview

    • 2014 Inter BEE - Ray Kalo of plura Broadcast

      2014 Inter BEE - Ray Kalo of plura Broadcast

    Prev 1 of 1 Next

    Product Documents

    Datasheet

    • UD300D Datasheet

    Manuals

    • UD300D Manual
    • UD300W Wall Mount

    Firmware

    • UD300D Firmware

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog

    Related products you might be interested in

    RUB GT-IWith RUB GT-I the RUB GT module will be able to receive a time & date reference via an IRIG-B signal. The RUB GT-I is an optional software for the RUB GT module.
    RUB PMThe RUB PM module is a power supply with integrated Ethernet interface. The RUB PM is part of the RUBIDIUM SERIES modular system which offers flexibility, future proof and longevity.
    RUB GB-VWith the RUB GB-V software option the RUB GB module will be able to add the VITC (Vertical Interval Timecode) to the video output signal.

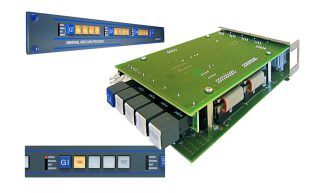

    RUB GI-IWITH RUB GI-I the RUB GI module will be able to receive time and date reference from an IRIG-B signal. The RUB GI-I is an optional software for the RUB GI module.
