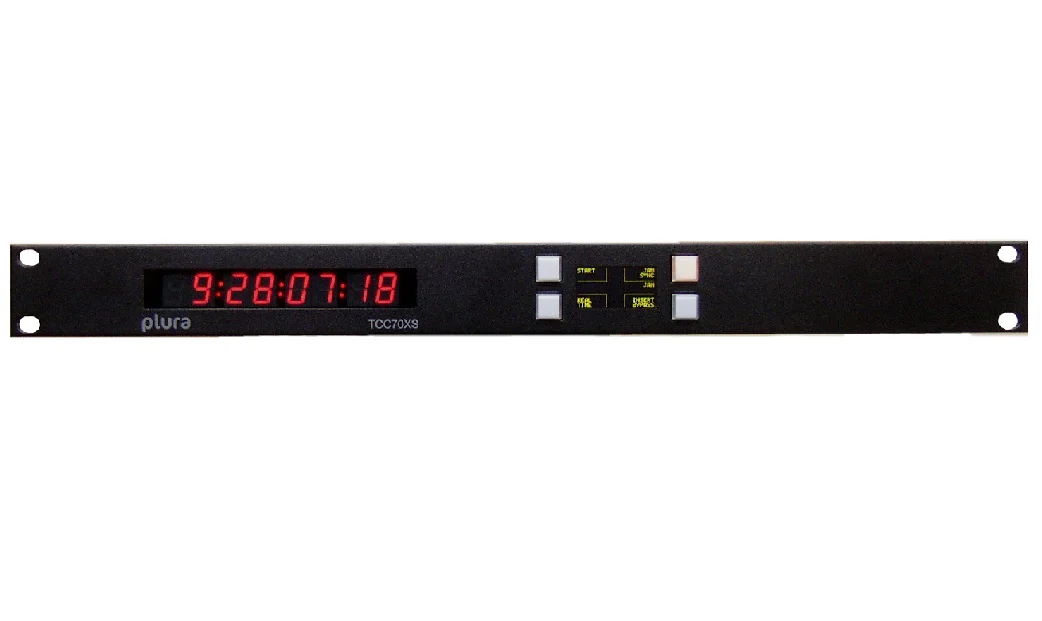

TCC70_frontTCC70_front

TCC70XS2

TCC70XS is a stand alone 3G/HD/SD SDI Time Code Inserter, Generator, Reader and Converter.

The TCC70XS is a compact system which fulfills all mandatory real-time based tasks in any studio and/or OB Van.



Product Documents

Datasheet

Manuals

Application Notes

Firmware

Software Tools

Additional Resources

Contact Sales

Description

  • Timecode Generator
  • Timecode Reader
  • Timecode Converter

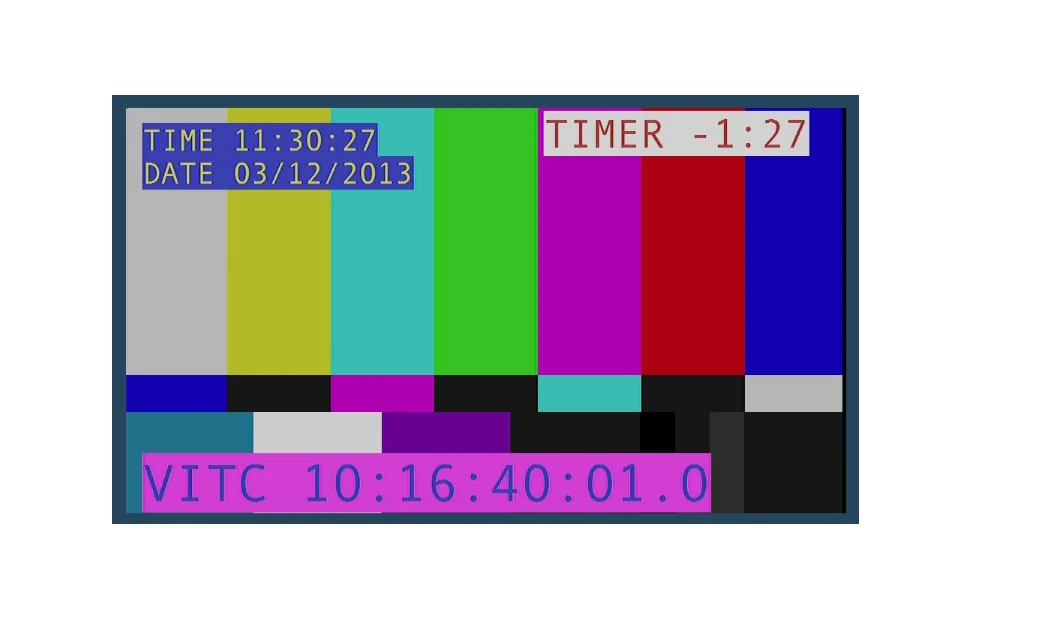

  • Time Code Video Inserter
  • Standard 4 Video Insertion Windows
  • LTC, D-VITC, ATC
  • 3G/HD/SD SDI Video Compatible
  • NTP Server
  • NTP Client
  • SNMP Agent
  • MTD Compatible
  • Input for external GPS Receiver
  • 4 programmable GPIOs
  • 4 programmable Front Buttons
  • Built-in Power Supply
  • Ethernet Configuration Port

Additional information

Weight 8.8 lbs / 4.0 kg
Dimensions 9.76 × 17.58 × 1.75 in / 247.9 × 446.5 × 44.5 mm
Features

NTP Client, Converter, Generator, Inserter, Reader
Housing

19" Rack, Stand Alone System
Generate

ATC, DVITC, LTC, NTP
Reference Type

GPS, LTC, NTP
RU

1
