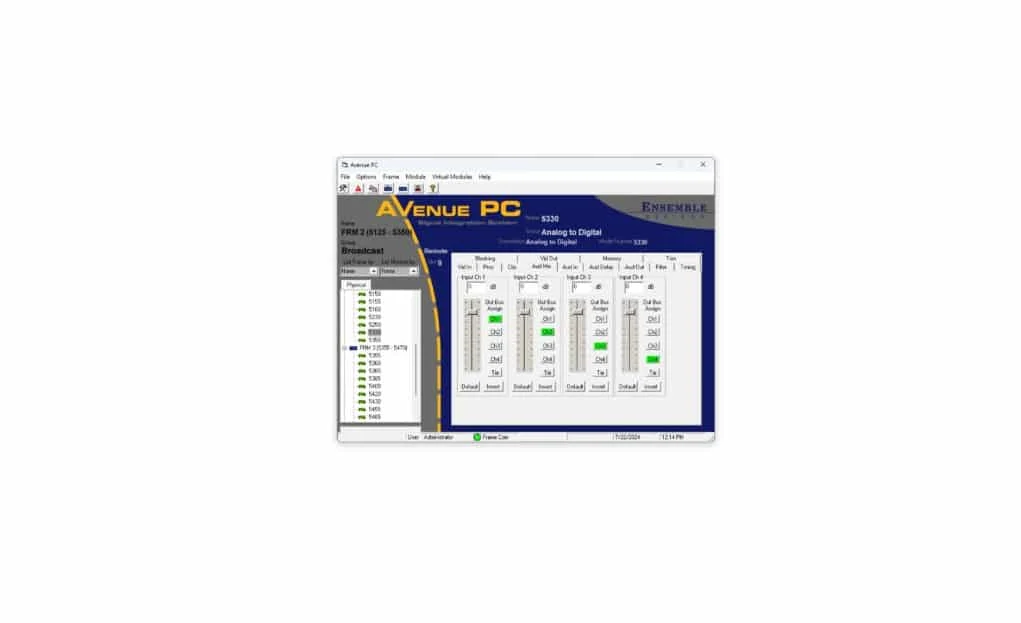

avenue_pc-gui-1021x623avenue_pc-gui-1021x623

Avenue PC Control

Avenue’s control system gives you complete control of your video and audio signals. Module configuration is straight-forward and intuitive. Along with Touch Screen and Express Panel control, you can also access and control all frames and modules in the Avenue system with Avenue PC Control Software. The Avenue PC application comes on CD or can be downloaded from the Ensemble website.

The Avenue PC Control Application Software option is a PC-based remote control application which allows you to completely control, configure and monitor the modules in each of your Avenue frames. Avenue PC can be installed on a PC running all Windows operating systems. PC interface to the Avenue frames can be made through an RS-232 serial connection or through Ethernet.

Your PC can be connected to one of the Avenue frames (1RU, 3RU, or Intersection Frame) through a PC serial port or via Ethernet on the back of the Avenue frames. When Avenue frames are connected via IP or AveNet, Avenue PC only needs to connect to a single frame to access the entire Avenue System. Regardless of the network topology, Avenue PC will have visibility and control over all of the modules.

Module Control

The Module Selection screen is illustrated at right. Available frames on the Avenue network will appear in the window. Expanding each frame will show the Avenue modules present in each frame.

As shown in the List Frame illustration at right, the frames can be listed by Name, Group and Address ID. The modules can be listed by Name, Group, Slot, Model, and Type.

When you select a module from the list the setup menus available for that particular module will be displayed. Also displayed on the Mainscreen above the menus will be the Name and Description of the module, the Group, the Module number and whether the module is set to Remote or Local and if the module is Locked or Unlocked. Make sure the front panel switch on the module is set to Remote to allow it to be controlled by Avenue PC.

Updating Avenue PC and Module Software

The latest Avenue PC and Avenue Module software can be from the support section.

Alarms

Avenue PC gives you the ability to set alarms on a frame or module basis. You can define Low and High Alarms and then set conditions on a frame or module to react with the defined alarms.

Low and High Alarms

The control data from each frame module can be used to alert you when a module indicator becomes active or a module is missing. There are two alarm conditions, Low and High. You may define both types of alarms, making one a higher priority than the other or setting up a higher priority condition in one type of alarm.

Each alarm condition allows you to define the characteristics that will alert you when a module condition changes. Some of the alarm types include Visual Blinking and Audio which allows your PC to sound a Beep or Red Alert. You can also set up an alarm to send an email or page.

Logging Alarms

The Alarms pull-down brings up the Alarms definition menu. To add an alarm, click on the Add Alarm box to bring up the Conditions entry screen. You can select the frame, then the module and choose the control data for the alarm given. You may also enable or disable the alarm with the Enable check box in the Conditions screen.

You can lock modules on Avenue PC and set Module User Levels. Modules in the Avenue system running v2.0 software or later have a User Level assigned to each adjustable control parameter. These levels are assigned to a default according to the type of adjustment. The User Levels of these parameters can be edited by an Administrator if desired using this menu.

Set User Levels

To edit Control User Levels, select an Avenue module from the frame list so its control parameters appear in the Edit Control User Level window. Select the individual Control in the list, then click on the User Level desired for this Control parameter. Select Done when finished to save and close the list.

Save and Load Module Configurations

Save Module Configuration: This menu allows you to save a module configuration to a file. All module parameters will be stored and this file may be saved or downloaded to another module of the same type.

Load Module Configuration: Selecting this function brings up a file location menu. The configuration from a stored file can be downloaded to another module of the same type.

Virtual Modules

Virtual Modules are custom menus that combine functionality from any modules in the system. Use the Virtual Modules menu to create the combinations of controls from any modules. Virtual modules allow you to customize a module’s menu to meet your facility’s needs.

Product Documents

Manuals

Software

Contact Sales

Description

  • Control and monitor all modules in the system from one or many locations
  • Easily adjust video levels, timing, audio delay and other parameters
  • Store module configurations to another module of the same type
  • Set user-defined alarms to alert you at any time when a fault condition has occurred and to maintain logs. Set email and pager alerts.
  • Download new module software – free for the life of the product!
  • Define access to each module parameter based on User Levels
  • Define security User Levels protected by pass codes for locking out module changes on critical paths
  • Customize module menus by creating “Virtual Modules,” custom groups of menus that combine functionality from any modules in the system

Related products you might be interested in

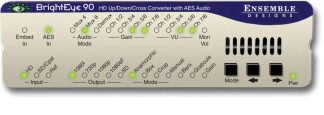

BrightEye 90-F HD Up/Down Cross Converter and ARC with AES Audio and Optical OutputBrightEye 90-F is a versatile up/down/cross converter or aspect ratio converter for use with analog and digital video signals with the addition of an optical output. Optical connectivity allows for long cable runs between buildings or in mobile applications. Simply set the BrightEye 90-F to output your facility’s preferred HD or SD standard. The BrightEye 90-F will accommodate whatever input you connect analog composite, SD SDI or HD SDI. After setting the output standard, BrightEye 90-F automatically converts the selected input to the correct standard for your facility. BrightEye 90-F will upconvert, downconvert, cross convert, or act as an ARC, as needed. The built-in Frame Synchronizer allows you to feed asynchronous signals to the BrightEye 90-F. An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed. Upconverting to High Definition Feed the analog composite or SD SDI output of a camera to a BrightEye 90-Fand upconvert to HD. You can take the HD signal from the BrightEye 90-F into a switcher or projection system. Upconverting existing SD equipment lets you leverage the equipment you already have and operate in the HD domain. While some cameras may have firewire out, using the video output and upconverting before distribution is preferable since longer cable runs can be achieved and quality is superior. Additionally, the BrightEye 90-F’s reference input allows you to time the upconverted video output for use with a production switcher. Downconverting to Standard Definition BrightEye 90-F will downconvert any type of HD signal and provides both an SD SDI and an analog composite output suitable for broadcast or monitoring. Cross Conversion It’s easy to convert between various HD standards, whether 720p or 1080i. Simply select the output standard you need and connect the input, that’s all there is to it. Aspect Ratio Conversion For converting between SD 4:3 and HD 16:9, BrightEye 90-F has you covered. Just select the output standard you need and connect the input. Audio Processing Made Simple BrightEye 90-F handles both embedded audio and discreet AES digital audio streams. Sixteen channels of embedded audio are supported in BrightEye 90-F. If the incoming video has embedded audio, the audio will be safely bypassed around the video processing and lipsync will be preserved. Audio mixing is available for two of the four embedded groups of audio. The AES I/O ports can be configured for eight channels of incoming audio or for eight channels of audio output. The audio mixer can be used for AES channels as well. Mixer controls are accessed through BrightEye Control Software. Monitoring for Video and Audio Audio monitoring is easy with BrightEye 90-F’s convenient 3.5mm mini jack. Select the audio channels you want to monitor from the front panel and plug in a headset. The HDMI connector on the rear of the unit provides a future proof monitoring interface. Plug it into most LCD monitors for confidence monitoring of your feed. Front Panel and Software Control Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected. Crop, letterbox and pillarbox can all be adjusted from the front panel. For more control, BrightEye Control Software provides controls for proc, audio mixing, and other advanced controls.

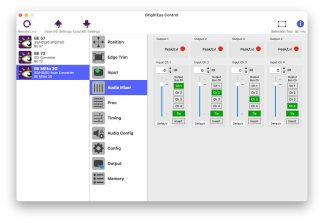

BEM-1-H, BrightEye Mitto 3G, 3G/HD/SD Scan Converter w/HDCP SupportUse BrightEye Mitto™ BEM-1-H to deliver DVI, HDMI, and VGA sources to 3G, HD and SD SDI video resolutions. Ensemble Designs’ proprietary scaling and filtering technology ensures that Mitto always produces a pristine, detailed video output. Even the most demanding CGI material is faithfully rendered to television. YouTube, Zoom, Tik-Tok, and Everything Else Made Easy Take just about any source to 3G, HD or SD SDI video. Computer video can now be used for the most demanding applications including broadcast, high-end military, medical, classroom, church and corporate. Just a small part of the screen, such as a Tik-Tok video, can be selected with a mouse and converted to full screen HD. Mitto delivers the best looking video – compare Mitto to any other scan converter and see the difference! HDCP is not a Problem Many systems now require HDCP for video playback, regardless of content licensing. BEM-2-H can handle HDCP encrypted content with the added BEM-HDCP option. Muting Disable available with the purchase of option BEM-HDCP license and signed waiver. BrightEye Control Software Using BrightEye control software, you can easily time BrightEye Mitto into a video production switcher or router. From your desktop, you have complete and intuitive control of video format, video levels, output timing, mixing audio channels, and audio delay. Pristine, Detailed Video Output A superior quality scan converter, BrightEye Mitto has the advantage of proprietary scaling technology and exclusive multi-tap filtering. Even a small part of the computer screen, such as a YouTube video, will be upconverted to full screen HD. The region selected for output determines if Mitto acts as an up converter or downconverter. The output looks as good, or better, than the original and passes the most stringent testing. Easy To Use Use the Selection Tool in BrightEye Control to select what portion of the screen you want to output. The Selection Tool floats over the content on your display, showing the portion of the video that will be output from BrightEye Mitto. Use Your Mouse To Select What is Output to Video Use your mouse to click and drag over the specific portion of computer video that you want to output. The perspective of seeing the whole screen relative to your selection gives you the ability to choose exactly which portion of the video you want to scan convert for output. Resize the selection window by clicking and dragging with your mouse. Mitto’s video output automatically goes to pillarbox or letterbox as needed. Mitto automatically maintains perfect aspect ratio. Digital and Analog Video and Audio The intuitive front panel interface makes it easy to choose the desired video output format. The genlock reference input allows the video outputs to be timed to house. Audio can be input through the DVI (or HDMI with adapter) input, or the 3.5mm audio input. The audio input accepts analog audio or AES digital audio. Audio is embedded into the SDI outputs – which is required for many high end applications. Audio delay controls let you adjust the audio timing with respect to video for perfect lip sync, which is crucial when using Zoom, Google Meet, or Microsoft Teams video in a production environment.
BrightEye 55 Genlockable Sync Generator and Test Signal GeneratorBrightEye 55 is a genlockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or it can lock to its own internal precision standard. BrightEye 55 is well suited for remote trucks, desktop and fly packs. Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathological) are just some of the signals simultaneouslyavailable on the SDI and analog composite outputs. An ID slate with user programmable text can overlay the test pattern. The cyclops feature adds a motion element to the video test signal, handy for live applications. The Tri-Level Sync output provides reference to high definition equipment, such as VTRs, disc recorders and workstations. There are a wide variety of user selectable formats including: 720p, 1080i, 1080sF, and 1080p. Format selections and other controls are accessed through the BrightEye Control app. AES 3id digital audio, analog audio and embedded audio reference outputs are provided.

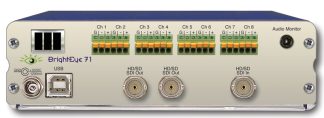

BrightEye 71 & 71-F HD/SD 8 Channel Analog Audio Embedder/DisembedderThe BrightEye 71 is a dual rate eight channel analog audio embedder or disembedder for 1.5Gb/s high definition video signals or for 270Mb/s standard definition signals. The analog audio ports automatically configure as inputs or outputs depending if the module is configured as mux or demux. When configured as a multiplexer, the BrightEye 71 has one serial digital video input and eight analog audio inputs. The audio streams are embedded into the video stream. The output of the module is a digital stream that contains the original video and audio signals. When configured as a demultiplexer, audio signals present in the incoming video signal are extracted and delivered as analog audio. The BrightEye 71 includes an eight channel audio mixer with channel swap and shuffle capability that allows you to completely re-arrange and re-mix audio channels. It provides precise control over audio level, with up to 12 dB of gain to compensate for low level sources. All audio processing is performed at full 24 bit resolution by a digital signal processor (DSP). Delay is adjustable up to one second. Order the BrightEye 71-F if you need an optical output.
