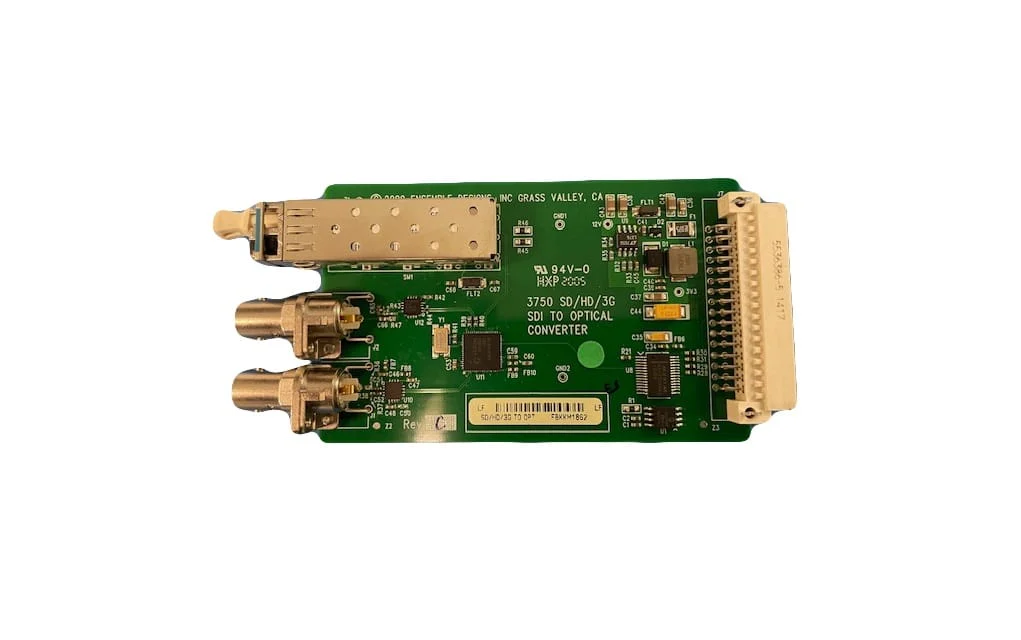

Avenue 3750-IS 3G/HD/SD/ASI Electrical to Optical Converter

The Avenue 3750 IS module is an electrical-to-optical converter that can be used with 3 Gb/s and 1.5 Gb/s high definition signals, standard definition signals or ASI signals. The video input is converted to an optical signal and presented on an optical SC connector. This optical output can drive single mode fiber to a distance of 20 kilometers. With an optical launch power attenuator, multi-mode fiber can also be used.

Product Documents

Datasheet

Contact Sales

Description

  • Electrical to Optical Converter
  • 3G/HD/SD/ASI Signals
  • Optical SC connector
  • Single mode fiber, up to 20km
  • Supports multi-mode fiber when using launch power attenuator
  • High Density in Avenue Intersection Frame
Serial Digital Input
  • Number One
  • Signal Type 270 Mb/s SD Serial Digital
  • SMPTE 259M or DVB-ASI at 270 Mb/s or
  • 1.485 Gb/s HD Serial Digital
  • SMPTE 274M, 292M or 296M
  • 2.97 Gb/s HD Serial Digital
  • SMPTE 424M, 425M
  • Impedance 75 Ω
  • Return Loss >15 dB to 1.485 GHz
  • >10 dB to 2.97 GHz
  • Max Cable Length 300 meters for 270 Mb/s
  • 100 meters for 1.485 Gb/s
  • 70 meters for 2.97 Gb/s
Serial Digital Output
  • Number One
  • Signal Type 270 Mb/s SD Serial Digital
  • SMPTE 259M or DVB-ASI at 270 Mb/s or
  • 1.485 Gb/s HD Serial Digital
  • SMPTE 274M, 292M or 296M
  • 2.97 Gb/s HD Serial Digital
  • SMPTE 424M, 425M
  • Follows input
  • Impedance 75 Ω
  • Return Loss >15 dB to 1.485 GHz
  • >10 dB to 2.97 GHz
  • Output DC None (AC coupled)
Optical Output
  • Number One
  • Signal Type 3G/HD/SD/ASI
  • SMPTE 297M, optical equivalent of 259M or
  • DVB-ASI at 270 Mb/s
  • SMPTE 274M, 292M or 296M
  • SMPTE 424M, 425M
  • Follows input
  • Wavelength 1310 nm (non-CWDM)
  • Wavelengths 170 nm – 1610 nm at 20 nm CWDM spacing available.
  • Call factory for price and specify part number 3750 IS-SP.
  • Power -7 dBm
  • Max Cable Length 20 km
  • Fiber Type Single Mode
  • Multi-mode compatible with attenuation at transmit end Connector SC/UPC
General Specifications
  • Power Consumption <5.0 watts
  • Temperature Range 0 to 40°C ambient (all specs met)
  • Relative Humidity 0 to 95%, noncondensing
  • Altitude 0 to 10,000 ft

Product Documents

Datasheet
