PHX15 AdapterPHX15 Adapter

BrightEye Audio Adaptors and Interfaces

We offer a variety of adapters to help you integrate your audio signals with our BrightEye compact converters.

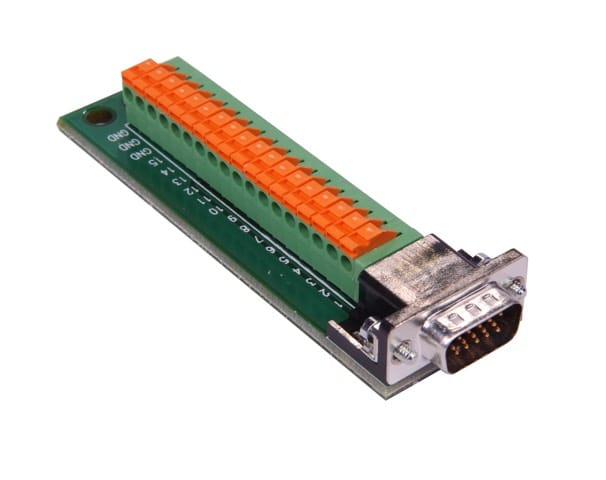

PHX15 Breakout Adaptor with Phoenix Terminals

For use with any BrightEye unit that uses the HD15 Analog Audio Connector. It is compatible with BrightEye 16, 20, 23, 24, 25, 26, 30, 30-D, and 54.

BEAC Analog Audio Breakout Cable

For use with any BrightEye unit that uses the HD15 Analog Audio Connector. One end of this cable has an HD15 connector and the other end is pigtailed for use with your choice of connector (e.g. XLR.)

5082-I 110 Ohm Audio Adaptor

Convert AES coaxial to AES 110 Ohm twisted pair by placing this adapter on the AES BNC connector on the back of the BrightEye unit. Compatible with BrightEye 70, 90, 90-F, 91 and BEM-1, 1F, 2, 2F.

Contact Sales

Description

  • Connect BrightEye converters to your audio devices
  • PHX15 Breakout adaptor for analog audio in BE16, 20, 23, 24, 25, 26, 30, 30-D, and 54
  • BEAC Analog Audio Breakout Cable breaks out analog audio to RCA or XLR
  • 5082-I 110 Ohm Audio Adaptor for connecting twisted pair AES to BrightEye converters with AES BNC’s
